What is Silicon Carbide?

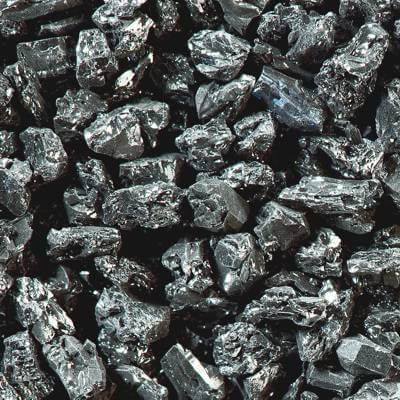

Silicon carbide (SiC) is a highly abrasive and wear-resistant blasting material known for its extreme hardness and sharp edges. It is produced in an electric resistance furnace at high temperatures and is recognized for its excellent abrasiveness and resistance to thermal shock. Silicon carbide is ideal for surface treatment of hard materials and is widely used in industries for demanding blasting applications
PRODUCT FEATURES
| Typical physical properties | |
|---|---|
| Hardness | ca. 9 – 10 mohs |
| Grain shape | angular/splintery |
| Melting point | ca. 2.300 °C |
| Specific gravity | ca. 3,2 g/cm3 |
| Bulk density* | ca. 0,75 – 1,82 g/cm3 |
*depending on grain size
| Typical chemical analysis | ||
|---|---|---|
| Black Silicon Carbide | Green Silicon Carbide | |
| SIC | 98,00 % | 99,00 % |
| Fe2O3 | 0,20 % | 0,20 % |
| C-frei | 0,50 % | 0,50 % |
| Magnetfraktion | 0,12 % | 0,12 % |
Available sizes
Silicon Carbide Macro
|
FEPA Average grain size (µm) |
|
|---|---|
| F 008 | 2000 – 2800 |
| F 010 | 1700 – 2360 |
| F 012 | 1400 – 2000 |
| F 014 | 1180 – 1700 |
| F 016 | 1000 – 1400 |
| F 020 | 850 – 1180 |
| F 022 | 710 – 1000 |
| F 024 | 600 – 850 |
| F 030 | 500 – 710 |
| F 036 | 425 – 600 |
| F 040 | 355 – 500 |
| F 046 | 300 – 425 |
| F 054 | 250 – 355 |
| F 060 | 212 – 300 |
| F 070 | 180 – 250 |
| F 080 | 150 – 212 |
| F 090 | 125 – 180 |
| F 100 | 106 – 150 |
| F 120 | 90 – 125 |
| F 150 | 63 – 106 |
| F 180 | 53 – 90 |
| F 220 | 45 – 75 |
|
Metric (SiC black) Average grain size (mm) |
|
|---|---|
| 0,25 – 0,50 | |
| 0,50 – 1,00 | |
| 1,00 – 2,00 | |
| 1,00 – 3,00 |
Other grain sizes can be produced if required.
Silicon Carbide Micro
|
FEPA Average grain size (µm) |
|||
|---|---|---|---|
| ds3-value max. | ds50-value | ds94-value min. | |
| F 240 | 70 | 44,5 +/-2,0 | 28,0 |
| F 280 | 59 | 36,5 +/-1,5 | 22,0 |
| F 320 | 49 | 29,2 +/-1,5 | 16,5 |
| F 360 | 40 | 22,8 +/-1,5 | 12,0 |
| F 400 | 32 | 17,3 +/-1,0 | 8,0 |
| F 500 | 25 | 12,8 +/-1,0 | 5,0 |
| F 600 | 19 | 9,3 +/-1,0 | 3,0 |
| F 800 | 14 | 6,5 +/-1,0 | 2,0 |
| F 1000 | 10 | 4,5 +/-0,8 | 1,0 |
| F 1200 | 7 | 3,0 +/-0,5 | 1,0* |
* at 80%
Blasting systems
Pressure blast machines
Vacuum blast machines
Packaging
25 kg bags on 1t pallets
1 ton loose in a big bag
SPECIFICATION
FEPA F Norm
FEPA P Norm
Why Choose Kuhmichel’s Silicon Carbide?
Kuhmichel’s Silicon Carbide offers more than performance—it’s a tailored solution backed by comprehensive guidance and quality control.
- Experience and Expertise: Decades of specialization and deep technical knowledge for optimal results.
- Top-Quality: Our Silicon Carbide meets stringent ISO standards and is continuously tested for purity and efficiency.
- Application-Optimized: Ideal for surface finishing, grinding, and use in high-temperature environments.
Key Properties of Silicon Carbide
Silicon Carbide is known for its exceptional hardness and high-temperature stability, making it perfect for demanding applications.
- Extreme Hardness: With a Mohs hardness of 9.5, Silicon Carbide offers excellent durability and efficiency in abrasive processes.
- High-Temperature Resistance: Resistant to temperatures over 1,600°C, ideal for high-temperature processes.
- Chemical Resistance: Resistant to acids and alkalis, making it versatile and durable.
Your Benefits at a Glance
- High Performance for Industrial Applications: Reliably removes surface contaminants and enables precise grinding and cutting.
- Cost-Effective and Reusable: Its stability allows for multiple uses, reducing costs.
- Reliable Quality: Our Silicon Carbide meets all relevant ISO quality standards and undergoes rigorous quality testing.
